Manage your 5 LED bar easily

What is this board?

This board was designed for one purpose, manage your home made LED flashing bar. This board will managed the input connections from your LED and send them to the Led-wiz or the PAC drive.


Connect your LED bar without the fear of over powering the LED or scratching your head in trying to find which wire goes to the Led-wiz or PAC drive board. Our board has each port clearly labelled and make it super easy to connect your Led bar to get great effects.

How does it work?

We have designed a LED power management board and we have used resistors to step down the 12v or 5v power to a 3v LED. We are using a carbon composite resistor. That type of resistor is non inductive which is ideal when there is a voltage pulse reduction and surge protector application.

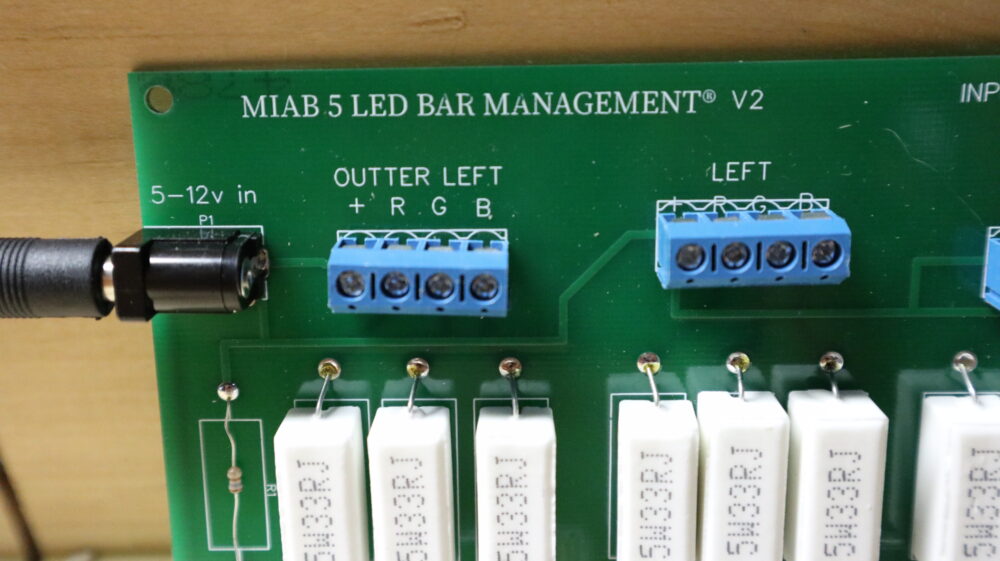

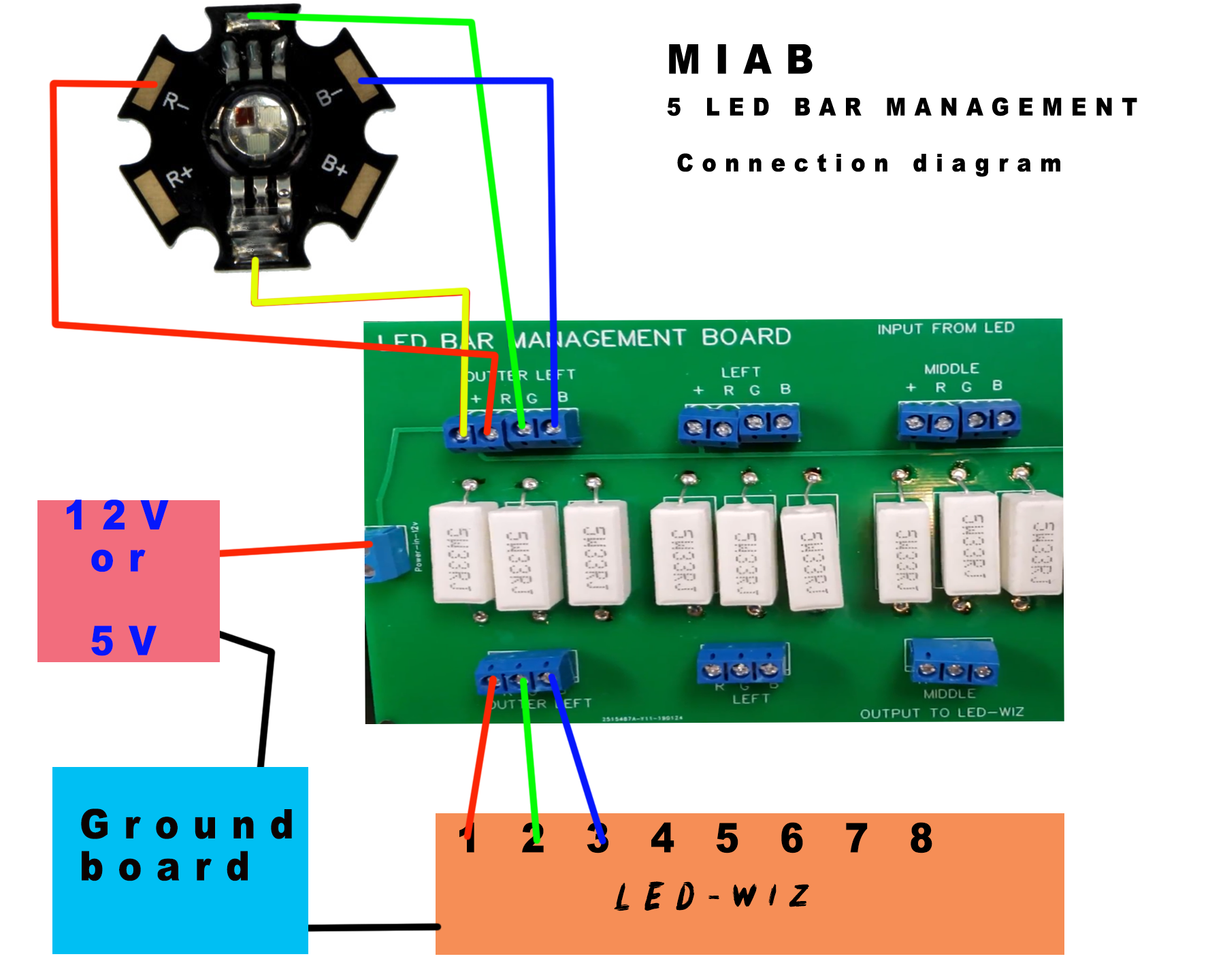

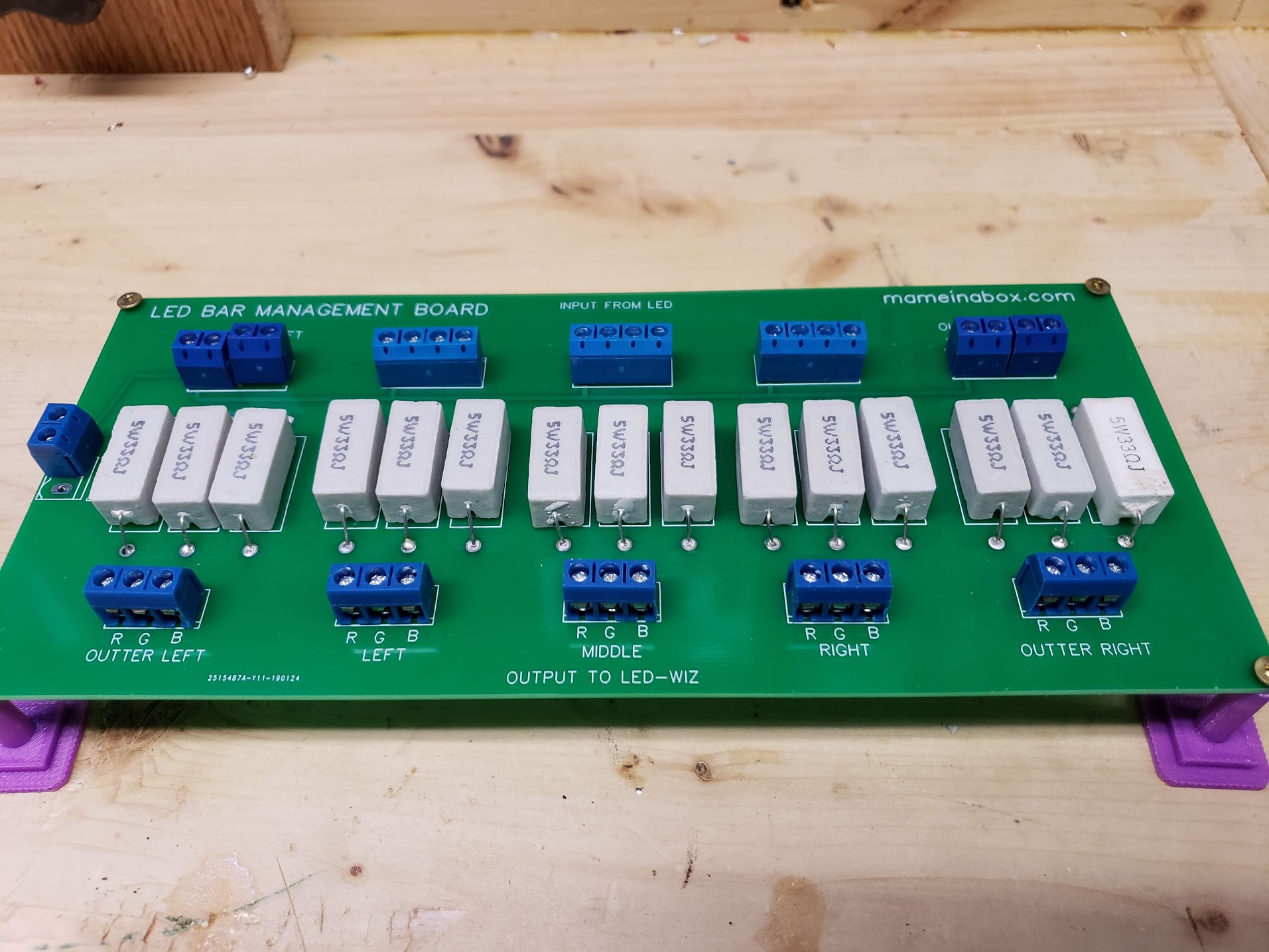

The board has 4 inputs: Power, Red, Green and Blue. The LED will connect the input connectors located at the top of the board. Connect one 12v+ to the 12V+ input located on the left side of the board. Then simply connect the 3 output R-G-B at the bottom of the board to the ledwiz or Pacdrive.
